Unlimited Configurability
Shape winding walkways, curved fishing decks, or sprawling sun platforms. Exclusive 45° and 90° curve sections let you follow your shoreline’s natural grace.
Ultimate Configurability & Customization with Easy Installation
The Dock System That Evolves With Your Life
Whether you’re crafting an intimate slip off your cottage for quiet morning coffee, a playful swim platform for weekend cannonballs, or a winding path that lets you cast where the big ones hide, the Infinity RS4 was designed for life by the water.
Perfect for:
Moderate to shallow depths (3-7 ft), stable to lightly fluctuating water levels
Families and cottagers who want to start small and expand easily over time
Gentle to moderate wave environments where a stable, elegant dock matters
Owners who value lightweight sections for seasonal install & compact off-season storage
Seamlessly adjust as your needs change—dock furniture one year, paddleboard racks the next, all without drilling or hiring a contractor.
Engineered for Lake Life
Dime-welded marine-grade aluminum frames, 5-sided adjustable legs, and robust pass-through foot pads keep your dock steady and secure through playful summers, stormy nights, and decades of lake traditions.
Low-Maintenance Luxury
From fade-resistant Glacier™ to rich woodgrain aluminum, nine premium decking options stay cool underfoot and keep their beauty without endless staining or scrubbing.
Easiest Install & Storage
Quick assembly, removable drop-in decking, and stackable frames make seasonal installation and takedown nearly effortless.
TECHNICAL SPECS & MATERIALS
Available in 4' and 6' widths and lengths up to 12', the Infinity RS4 also offers exclusive 45° and 90° curved sections for creative, modular layouts that suit any shoreline.

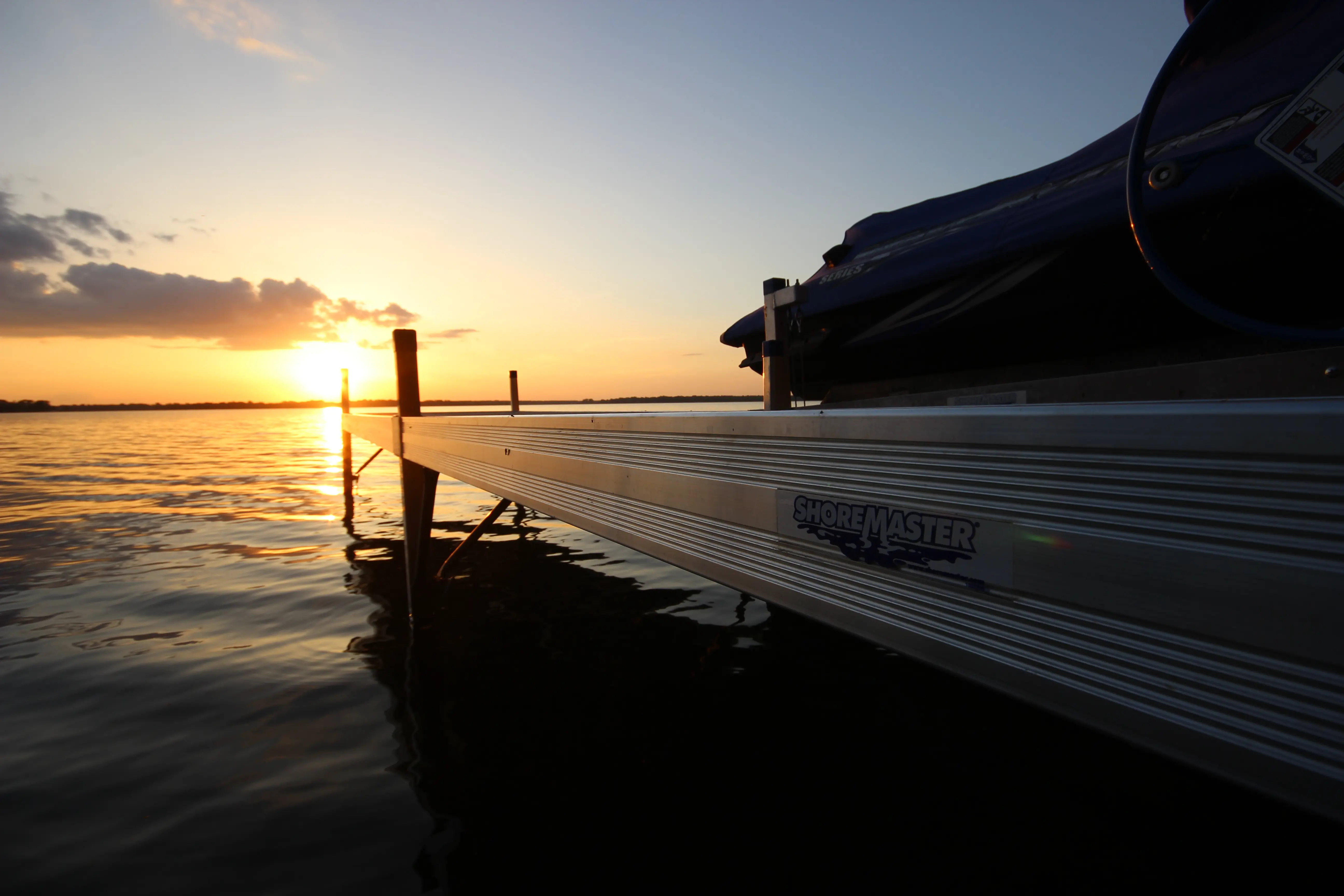

The RS4 features a fully welded, precision-crafted frame built from 4" marine-grade aluminum side rails—delivering unmatched strength, corrosion resistance, and long-term durability in a lightweight design.

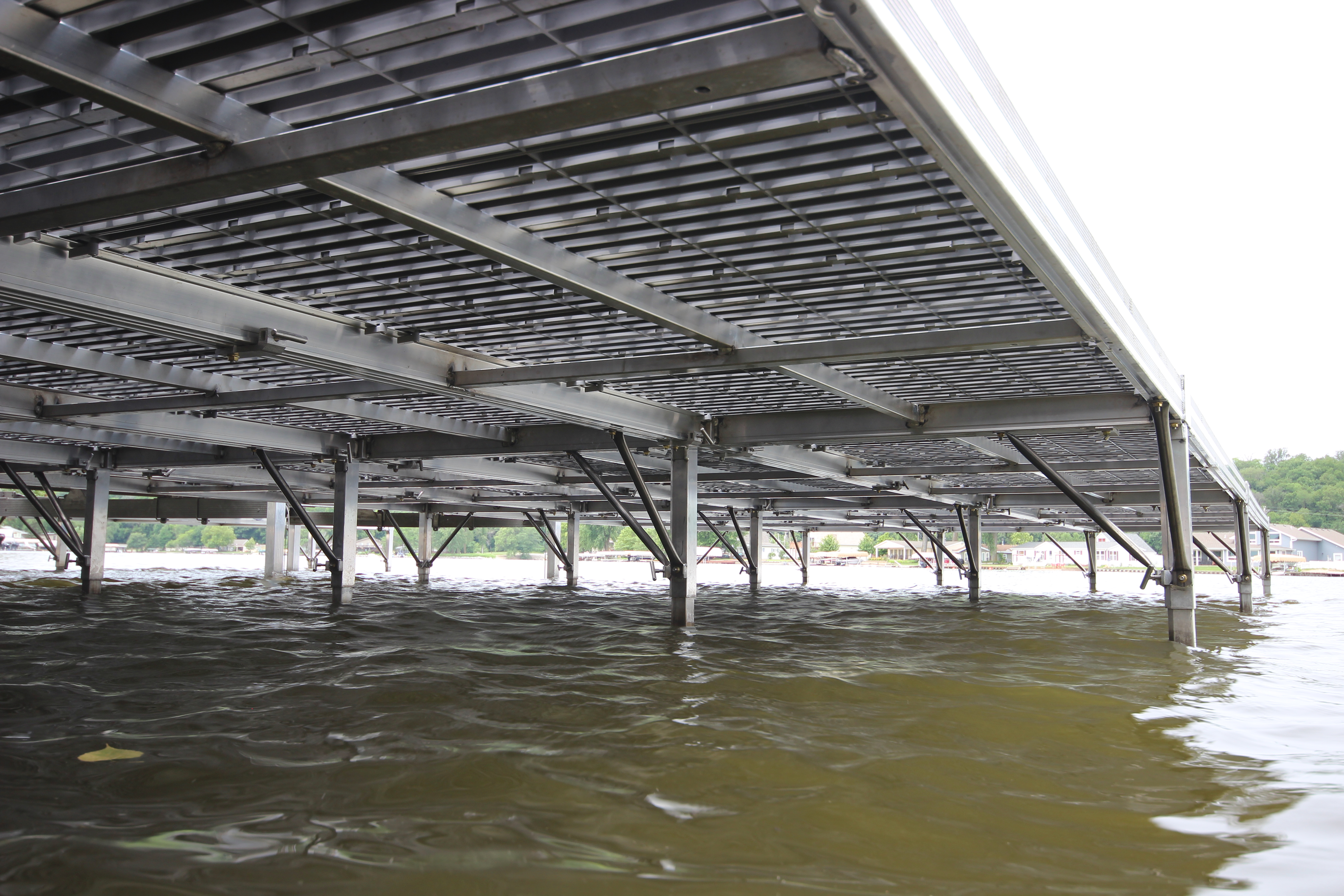

Its 5-sided adjustable aluminum legs with pass-through foot pads provide rock-solid stability, even on uneven or soft lake bottoms.
Whether you’re starting small or expanding over time, the RS4’s modular, fully welded frame is made to evolve with your waterfront lifestyle.
Infinity RS4 Dock Sections Available:
Section Size | Frame Weight* |
4' x 4' | 52 lbs |
4' x 10' | 82 lbs |
4' x 12' | 97 lbs |

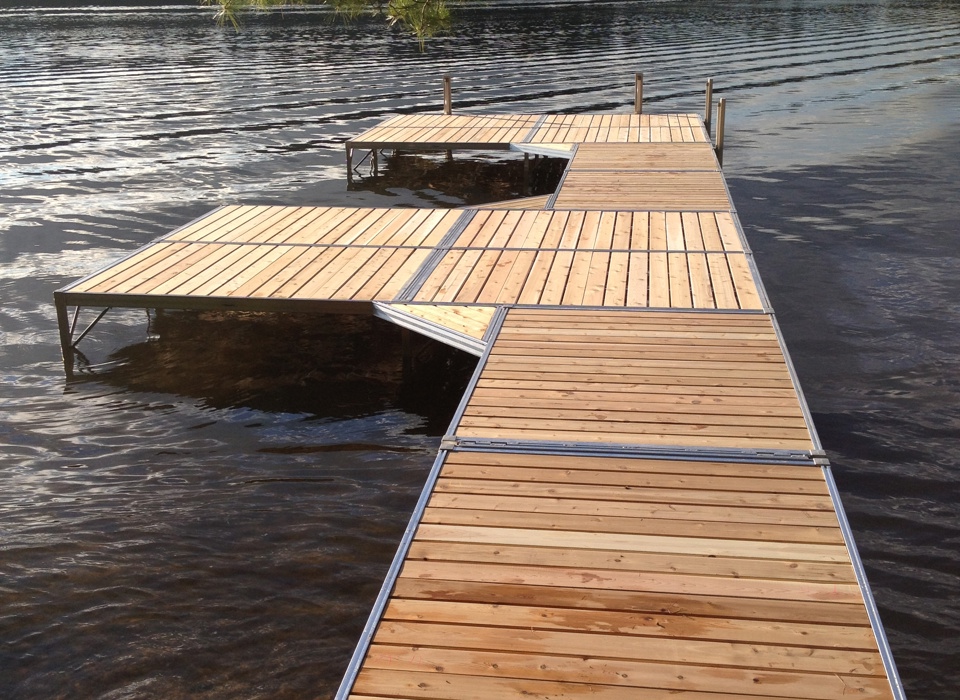

6' x 8' | 90 lbs |
45 Curve | 33 lbs |
3' Corner | 20 lbs |
90 Curve | 36 lbs |
*Frame section only - not inclusive of decking or dock legs
Storage & Seasonal Removal
Lightweight Sections. Effortless Off-Season Storage.
The Infinity RS4 sectional dock system is designed for smooth seasonal transitions. Each lightweight dock section can be removed without heavy equipment, and our drop-in decking panels lift out individually for easy handling. Frames are stackable, so your dock takes up minimal space along the shoreline or in storage during the winter months.
Why It Matters for Sectional Dock Owners:
Lightweight Handling – Marine-grade aluminum frames keep each section easy to move by hand.
Quick Breakdown – QuickConnect™ assembly means fewer bolts and faster disassembly.
Compact Storage – Stackable sectional dock frames and decking store neatly in limited space.
Year-Round Protection – Keep your dock out of the ice and snow to extend its lifespan.
Whether you’re pulling out a few curved sections or the entire dock system, the RS4 makes seasonal removal and storage faster and simpler — so you can spend more time enjoying the water and less time wrestling with heavy, awkward parts.
COMPARE: Infinity RS4 vs. Typical Dock Systems
Feature | Infinity RS4 by ShoreMaster | Typical Dock Systems |
Frame Construction | Precision dime-welded marine-grade aluminum for decades of strength | Bolted or spot-welded aluminum/steel; can flex, loosen, or corrode |
Dock Style | Modular sectional with 45° & 90° curves | Mostly straight sections; few or no curves |
Side Height / Strength | 4″ continuous rails + internal stringers for rigidity | 2–3″ profiles with fewer supports; prone to flexing |
Section Attachments | QuickConnect for endless layouts & easy re-config | Bolts or clamps; limited changes; may loosen seasonally |
Leg System | 5-sided adjustable legs with pass-through foot pads for stability | Standard round/square legs; less stable on uneven beds |
Leg Pocket Height | 18″ deep pockets for secure adjustment | Shallow pockets or fixed-height legs |
Screw Legs Available | Yes, for soft lake beds | Rarely offered or special-order |
Section Sizes & Flexibility | 4′, 6′, 12′ lengths + exclusive curves | Standard rectangles only (4′×8′, 4′×10′) |
Accessory Compatibility | Tool-free InfinityTrack install & relocation | Requires drilling or fixed bolts; harder to move |
Decking Options | 9 premium low-maintenance choices | 2–3 basic decking types |
Why It Matters
More strength & stability. The RS4’s dime-welded marine aluminum & deeper side profile outperform many lighter frames that can twist or rattle with boat wakes.
More layout freedom. Curves + modular InfinityTrack let you build a dock that matches your shoreline & lifestyle, not just a series of rectangles.
More future-proof. Want to add a kayak rack, extra bumpers, or a lounging platform later? Just slide it onto the track — no drilling or patching holes.
Decking Options
Choose from nine premium, low-maintenance decking styles, including painted aluminum, woodgrain aluminum, flow-through poly, and ShoreMaster’s exclusive Vertex™. Each style is designed to complement your shoreline aesthetic while delivering traction, durability, and easy ownership.
InfinityTrack Accessories
Our tool-free InfinityTrack system makes it easier than ever to add furniture, steps, ladders, bumpers, cleats, lights, fishing rod holders, and more. No drilling. No hassle. Just clamp and go.

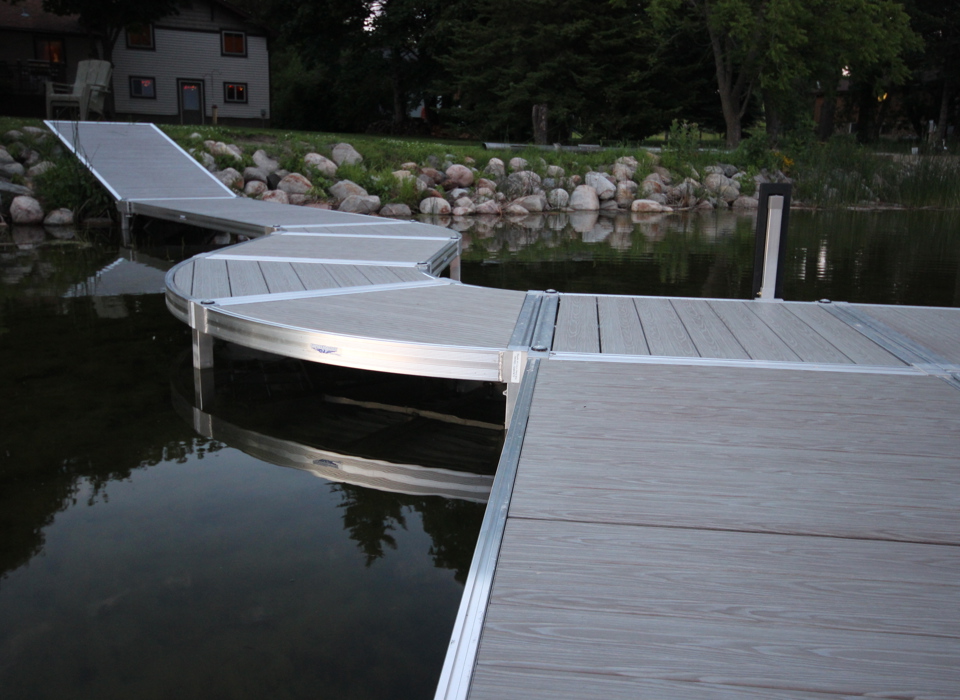

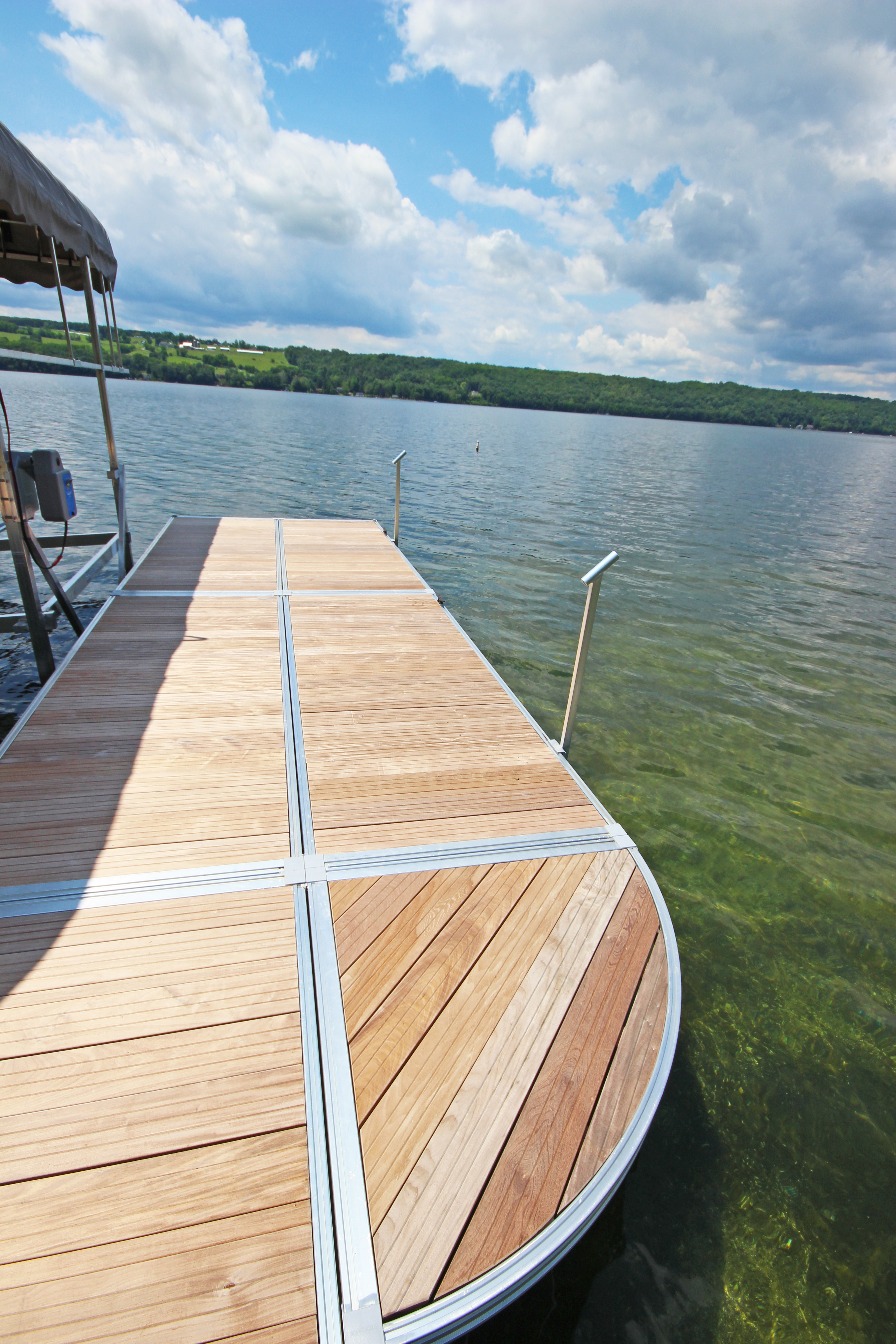

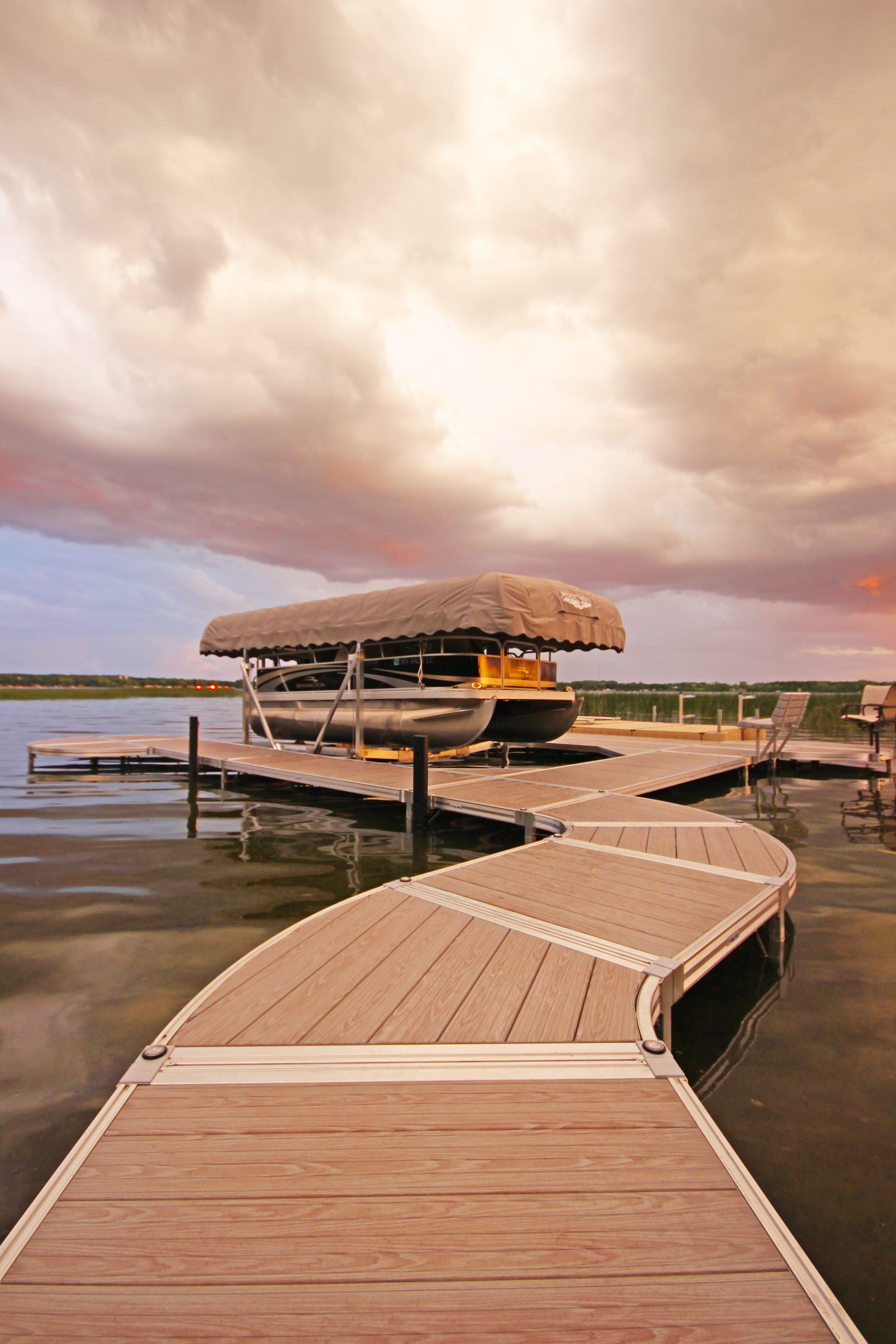

Curve Dock
ShoreMaster’s exclusive 45° and 90° curved dock sections add smooth transitions, rounded platforms, and standout gathering spaces. Built with the same strength as our straight sections, they’re an easy way to personalize your dock and match your shoreline’s style.
InfinityTrack Dock Accessories
Make your sectional dock system work for you with the ShoreMaster InfinityTrack accessory system. ShoreMaster offers the industry’s most dock accessories, all equipped with our hassle-free, tool-free InfinityTrack installation. It allows your Infinity Dock System to truly fit your unique needs.

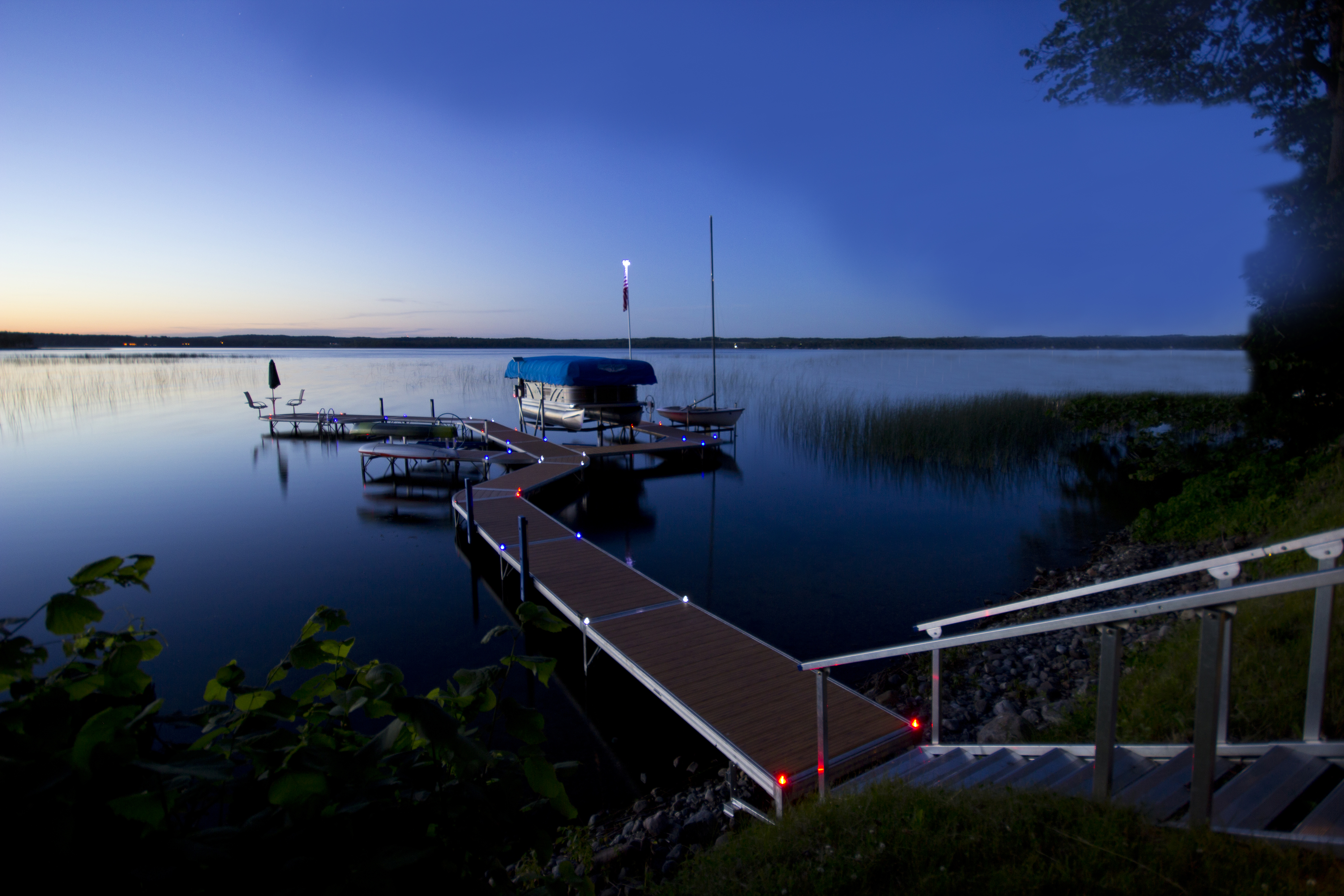

GALLERY

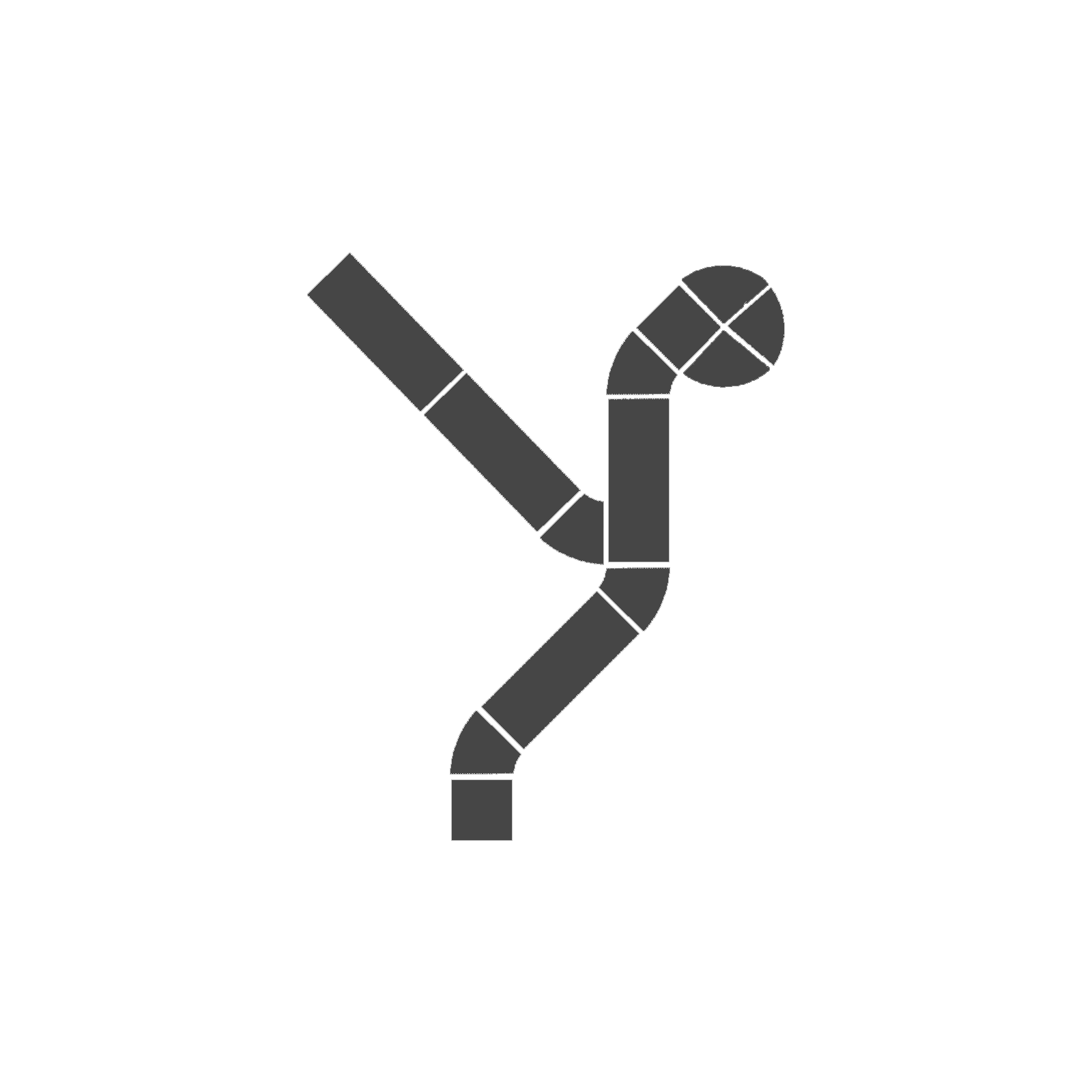

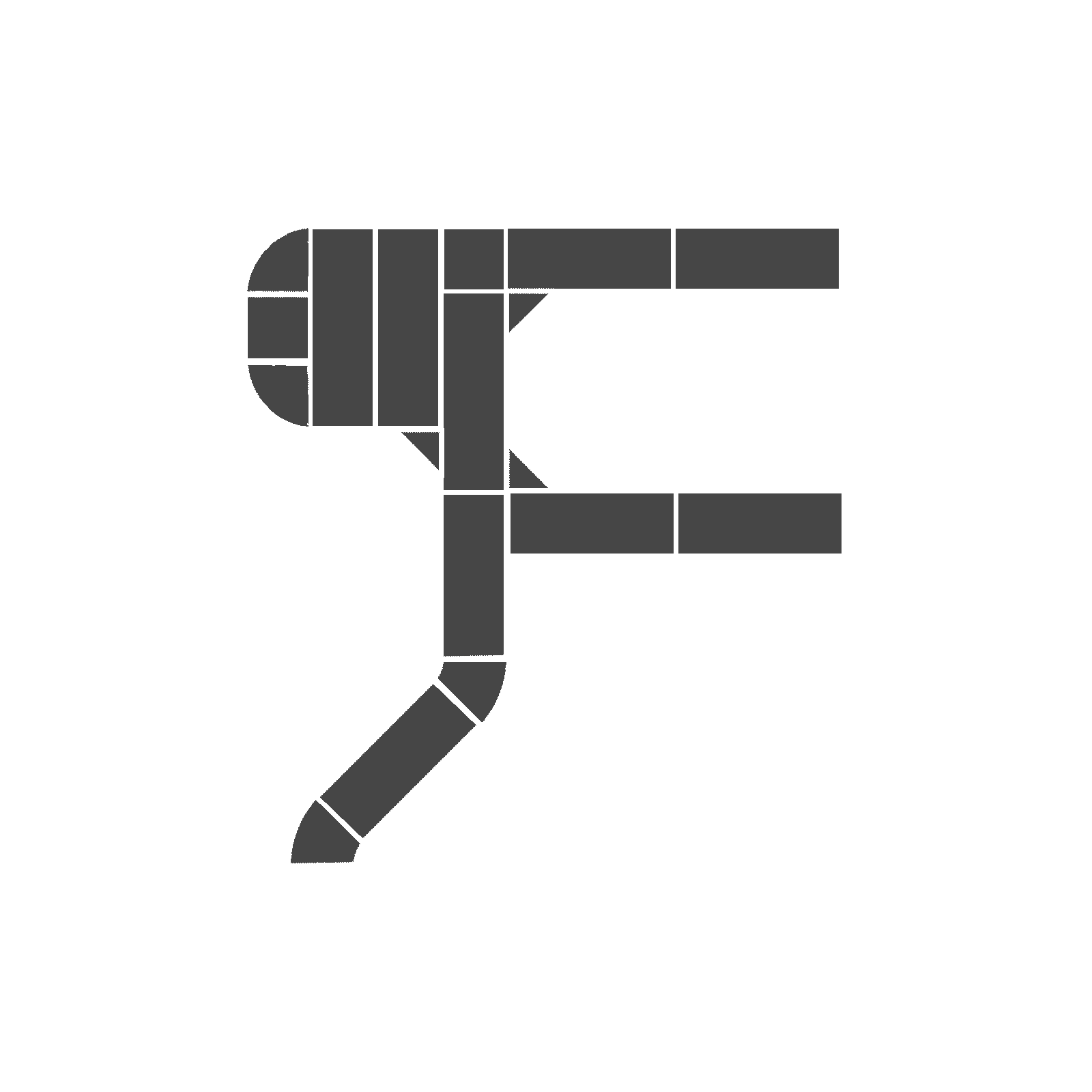

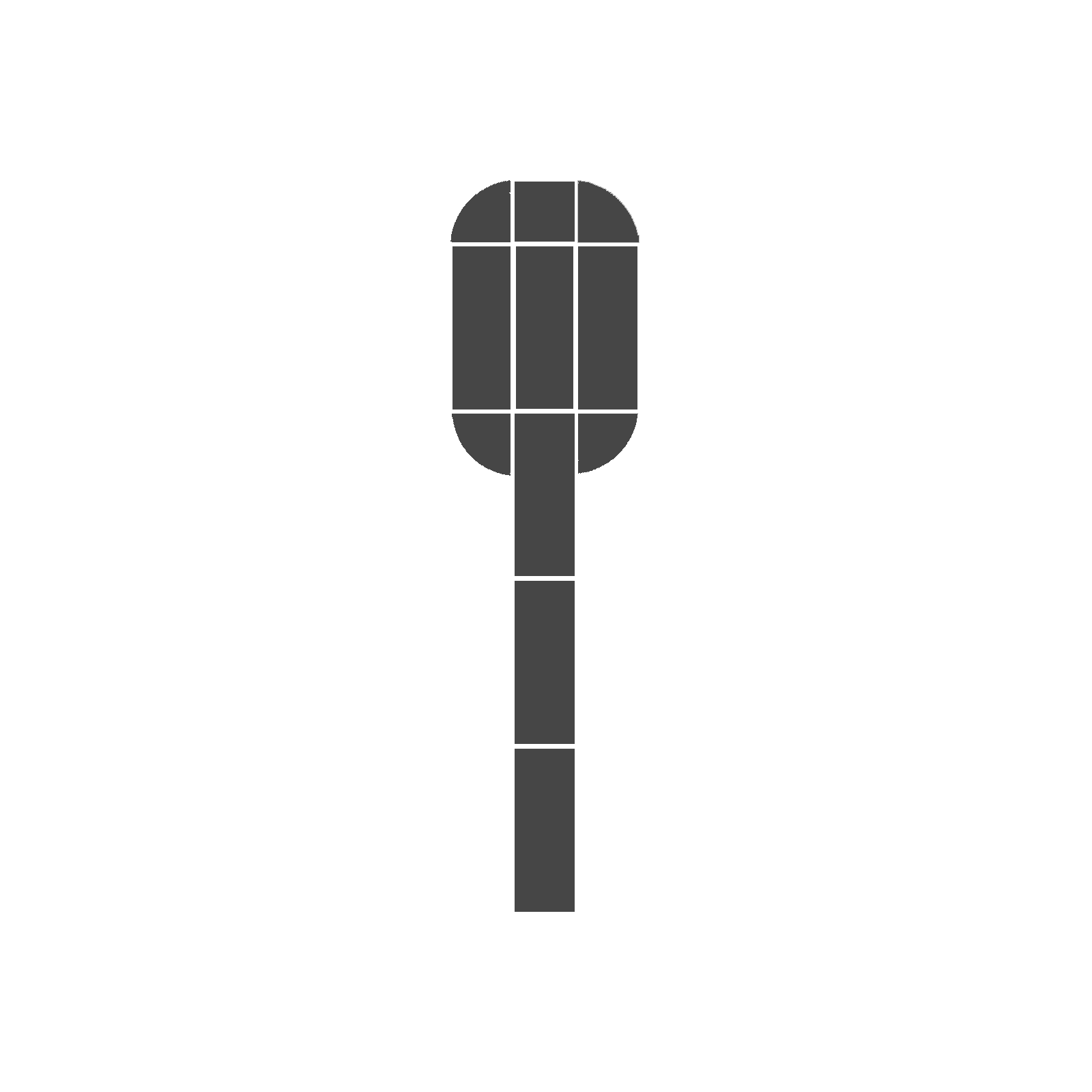

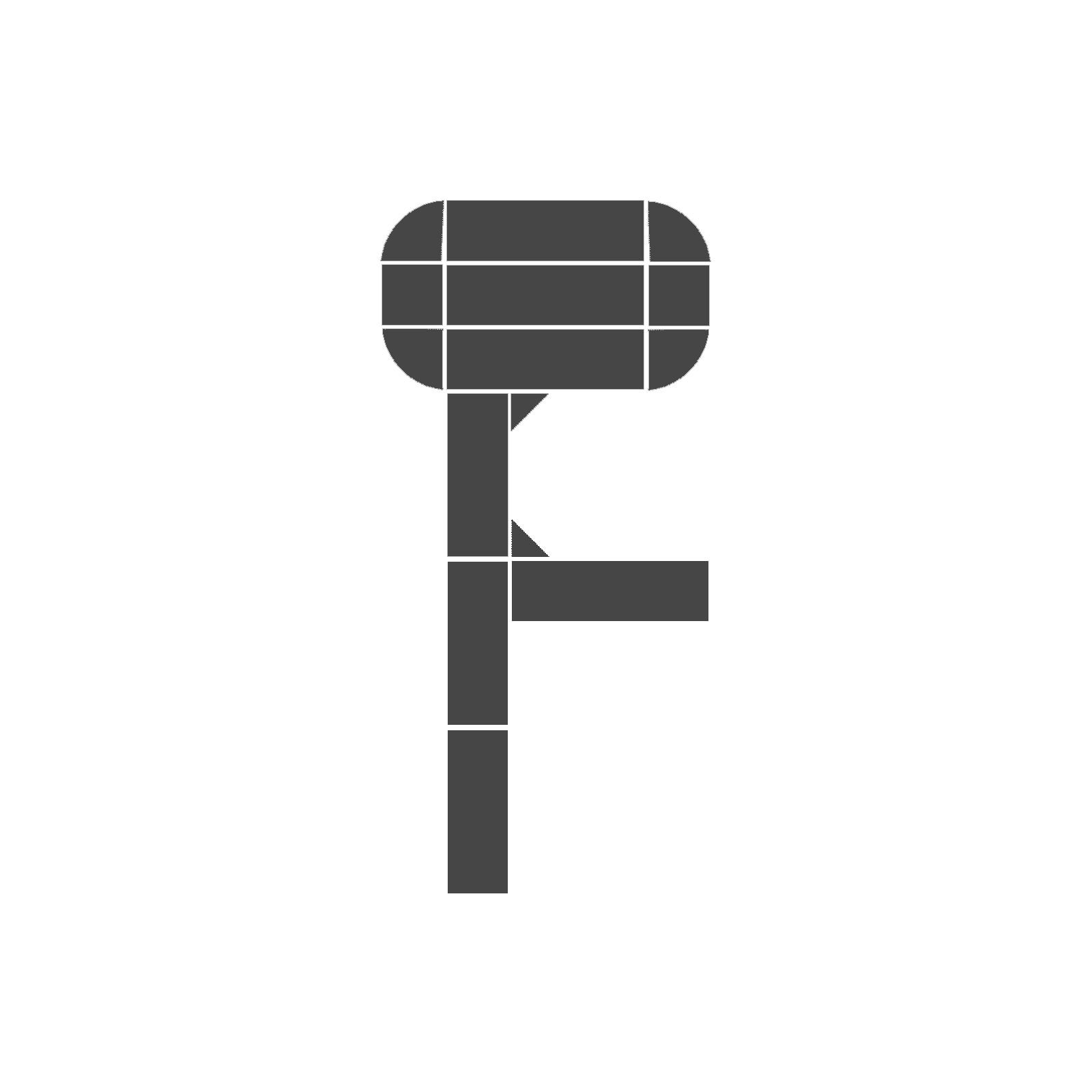

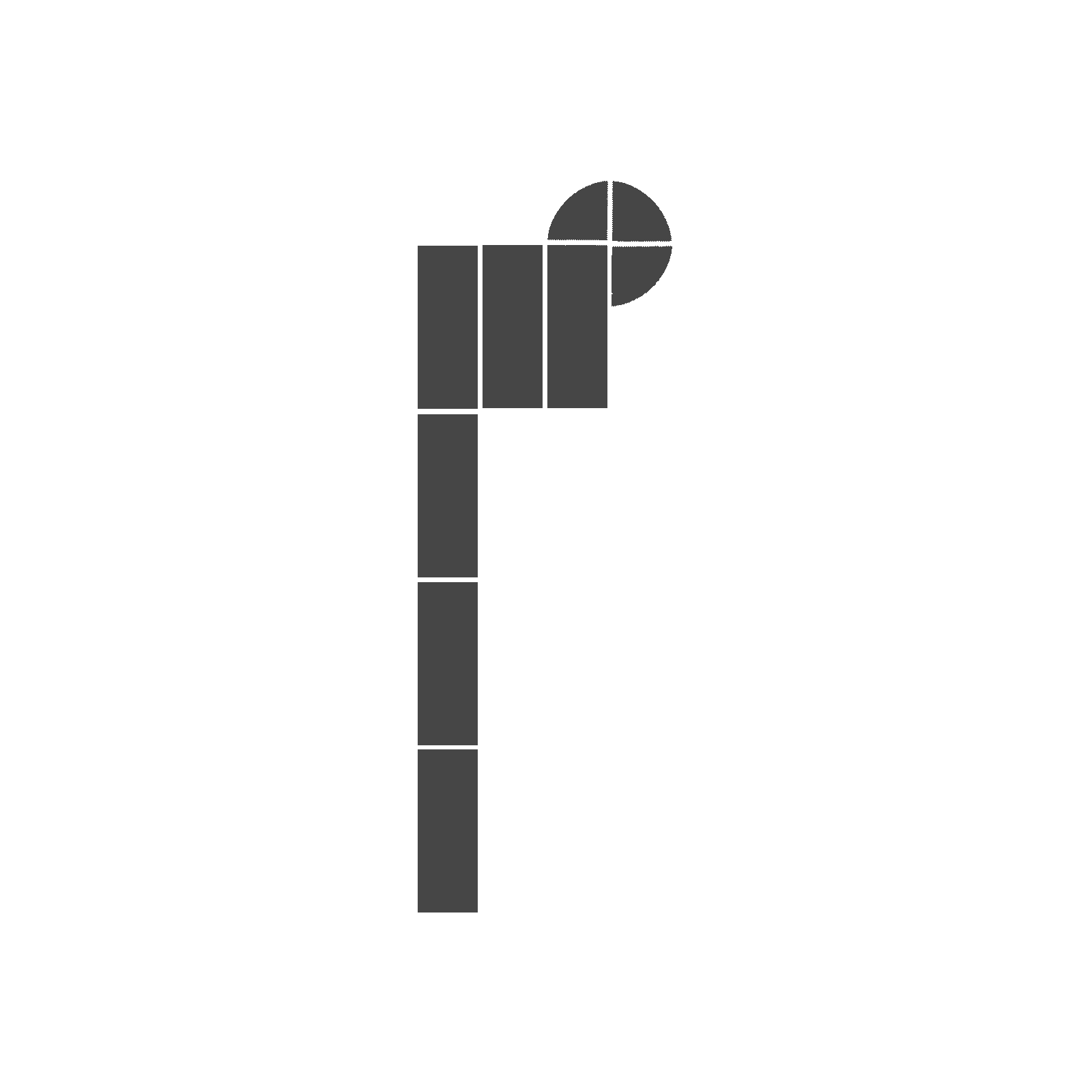

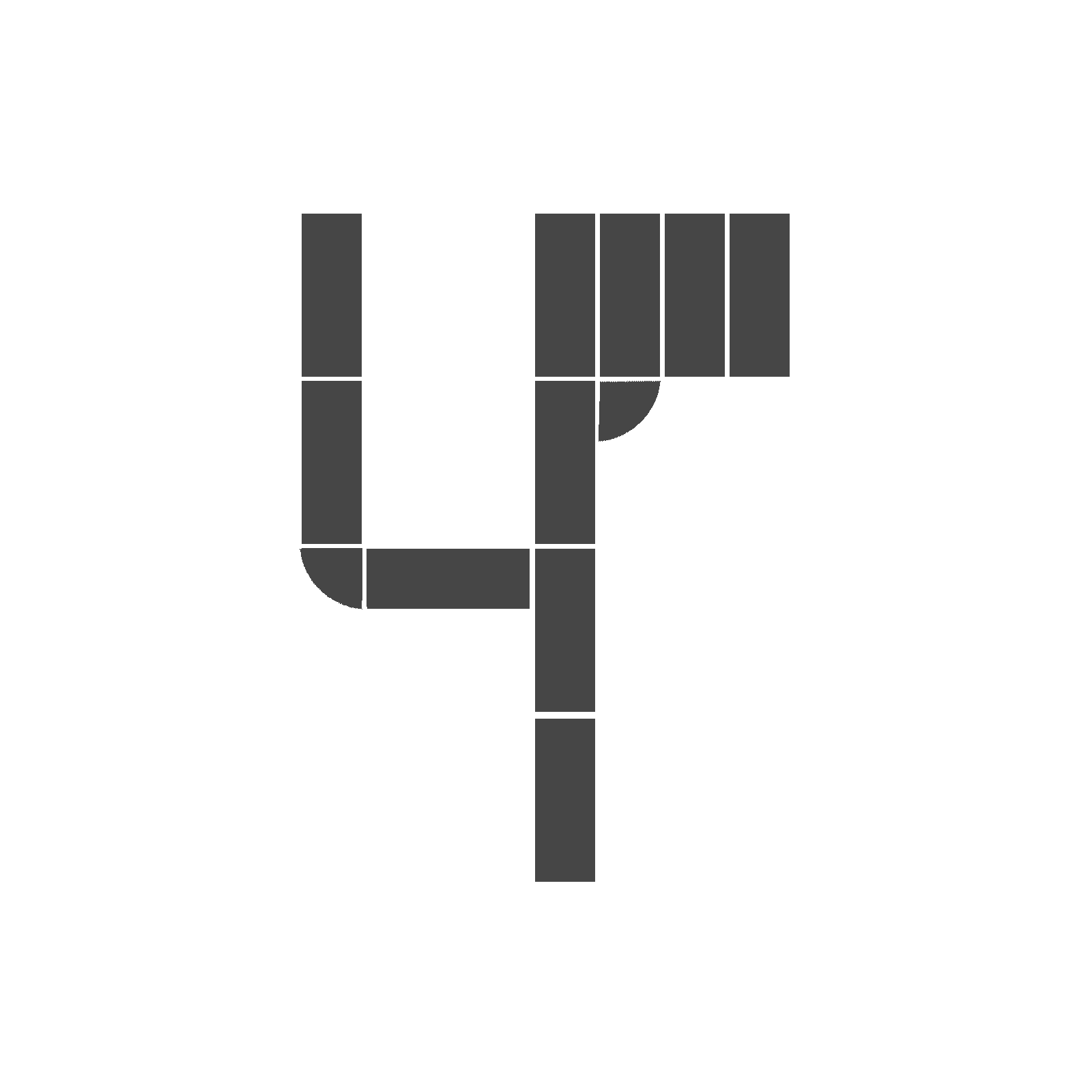

DOCK CONFIGURATIONS
Related Articles
FAQs for Infinity RS4 Docks:
Is the RS4 stable enough for larger gatherings or furniture?
Yes — the 4" welded frame and oversized foot pads keep the dock extremely secure, even with lounge furniture or groups gathered on wide platforms.
Can I mix the RS4 with floating or wheel-in sections?
Absolutely. Many homeowners start with an RS4 layout and later add a floating FTS9 off the end for deeper water, or wheel-in modules for easier installation on certain shores.
What’s the expected install time?
Two people can often assemble a basic 40’ RS4 dock with accessories in a few hours thanks to QuickConnect and drop-in decking. No heavy machinery needed.
How does it perform long-term?
UV-resistant decking, corrosion-proof marine aluminum, and stainless hardware mean minimal upkeep. Many RS4 docks installed over a decade ago still look nearly new.
