Ultimate Durability
Fully welded aluminum frames with heavy-duty connections resist corrosion, stress, and wear — even in harsh weather.
Ultimate Configurability & Customization with Easy Installation
Engineered for Today’s Pontoons and the Way You Live on the Water
Your boat isn’t average — neither should your lift be. The ShoreMaster Pontoon Boat Lift is purpose-built with:
Wider and longer frames to support today’s bigger deck layouts and triple-tube designs.

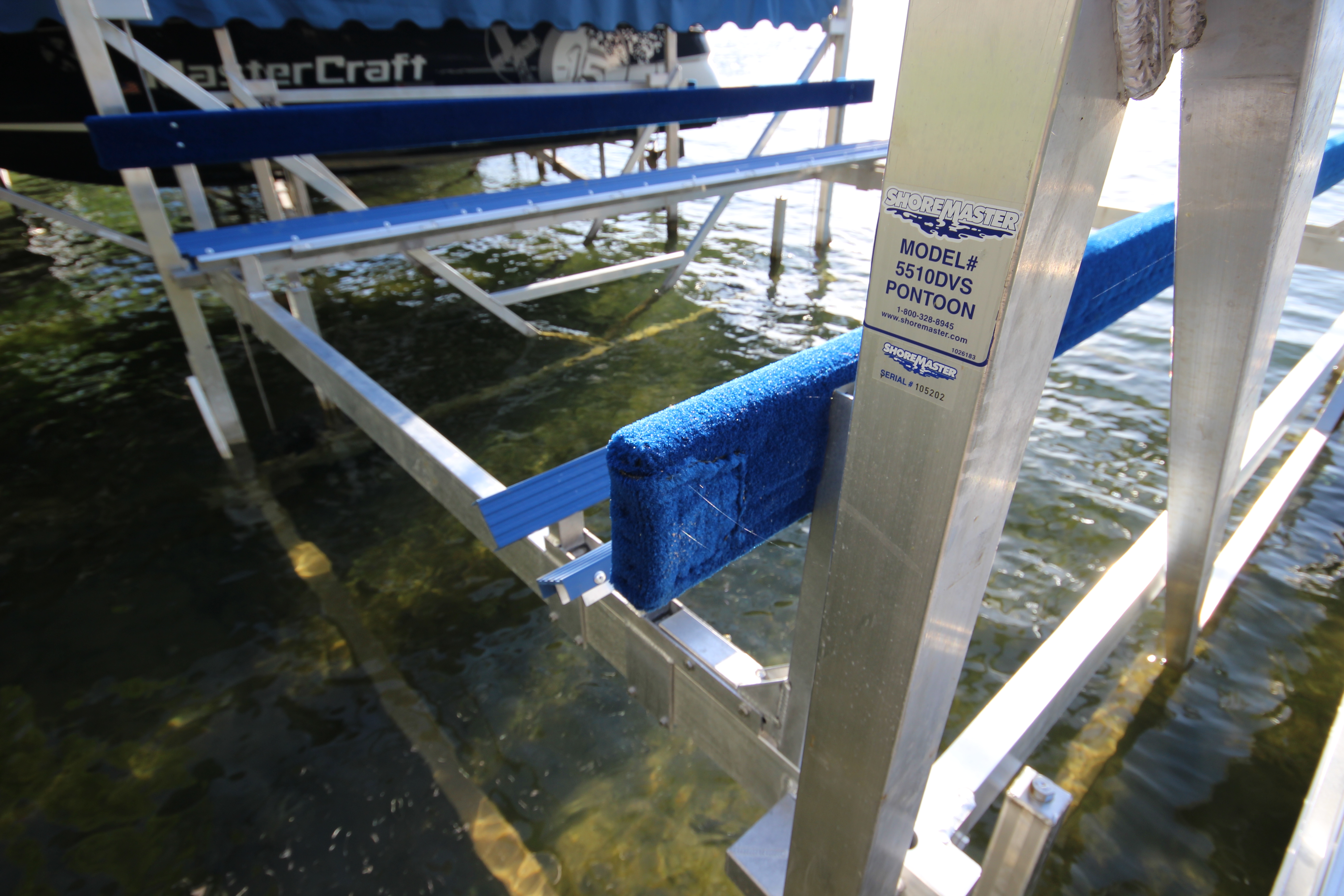

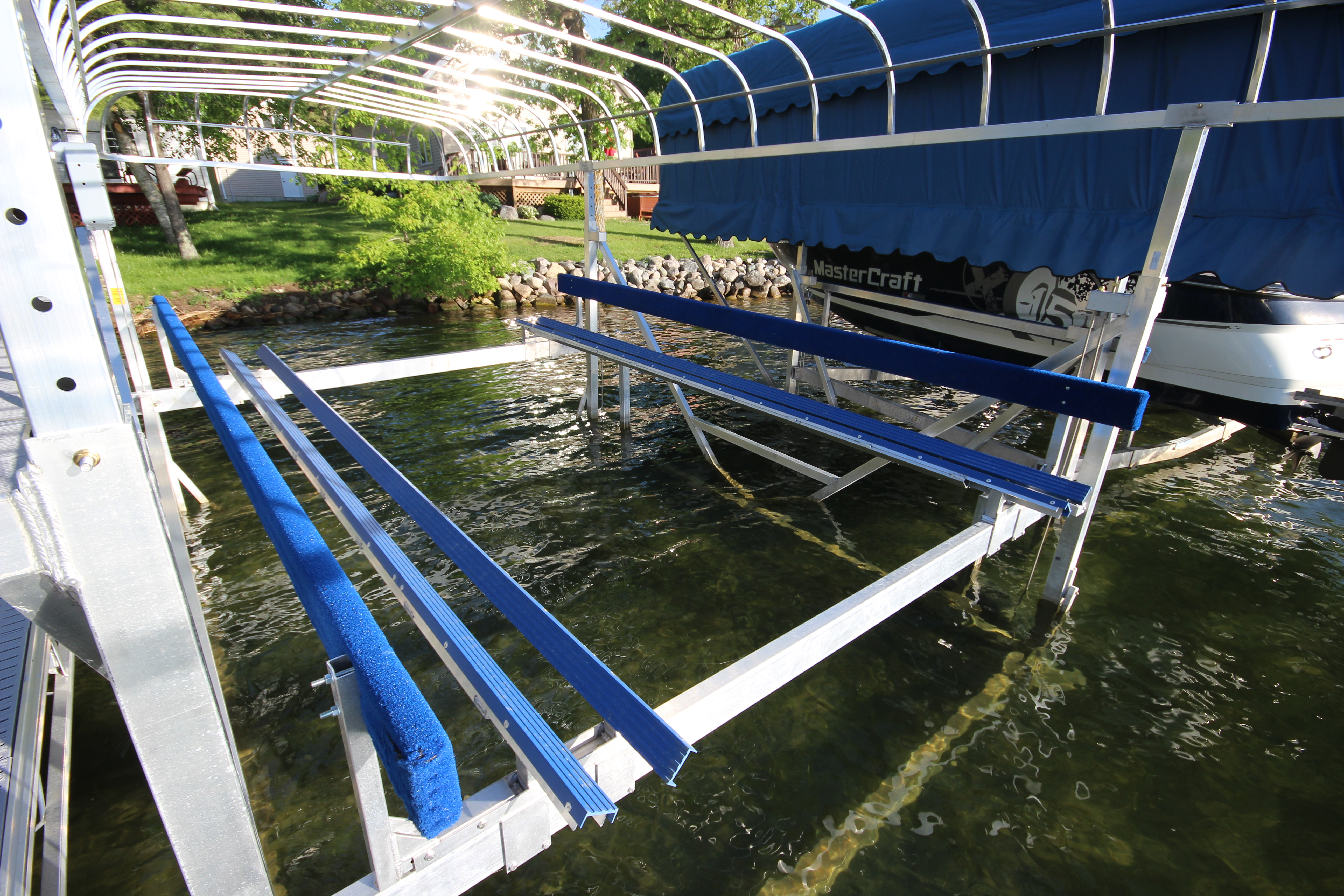

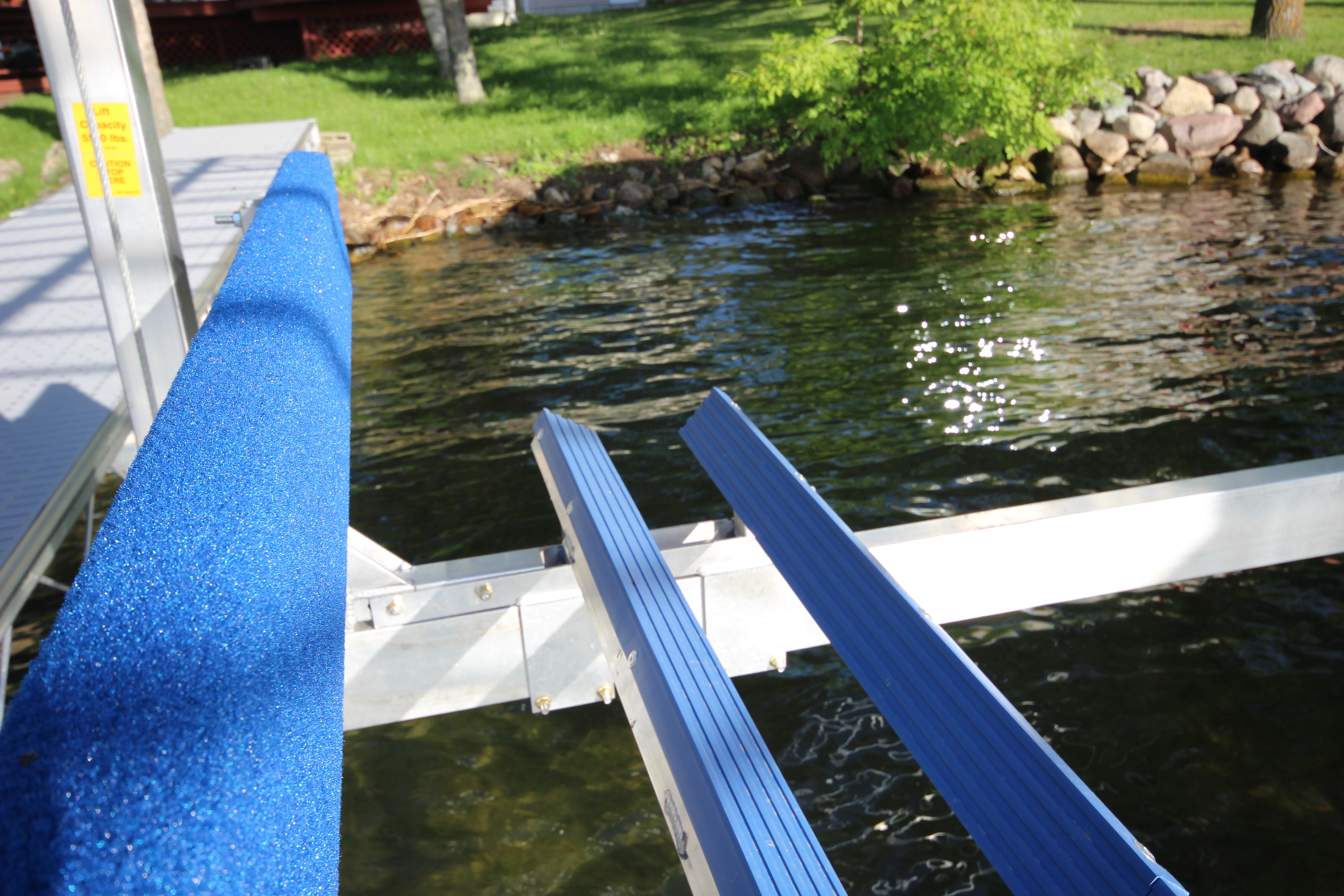

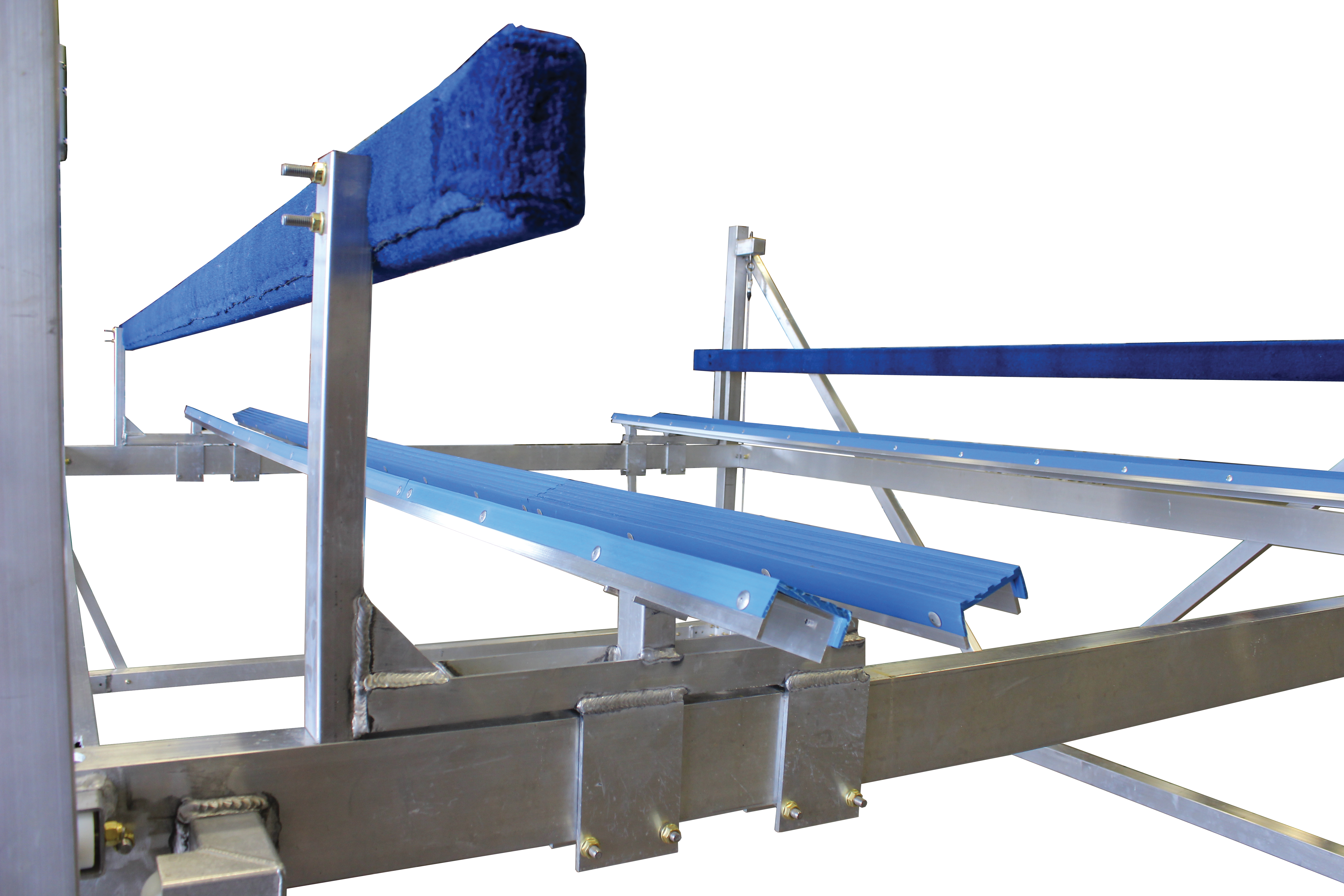

Standard pontoon rail guides that cradle your boat, reduce sway, and simplify centering.
Double v-side frame that makes it a breeze to board from either side.
All precision-crafted in dime-welded aluminum that won’t flex, corrode, or fatigue. It’s the kind of quality you’ll see and feel every time you hit the water.
Smooth, Silent Operation
The exclusive Whisper Winch system ensures quiet lifting, while non-marring UHMW rack rollers protect your boat.
Superior Versatility
66” rack travel + high 84” winch post handle fluctuating water levels with ease. Double V-Side lets you board from either side.
Decades of Proven Performance

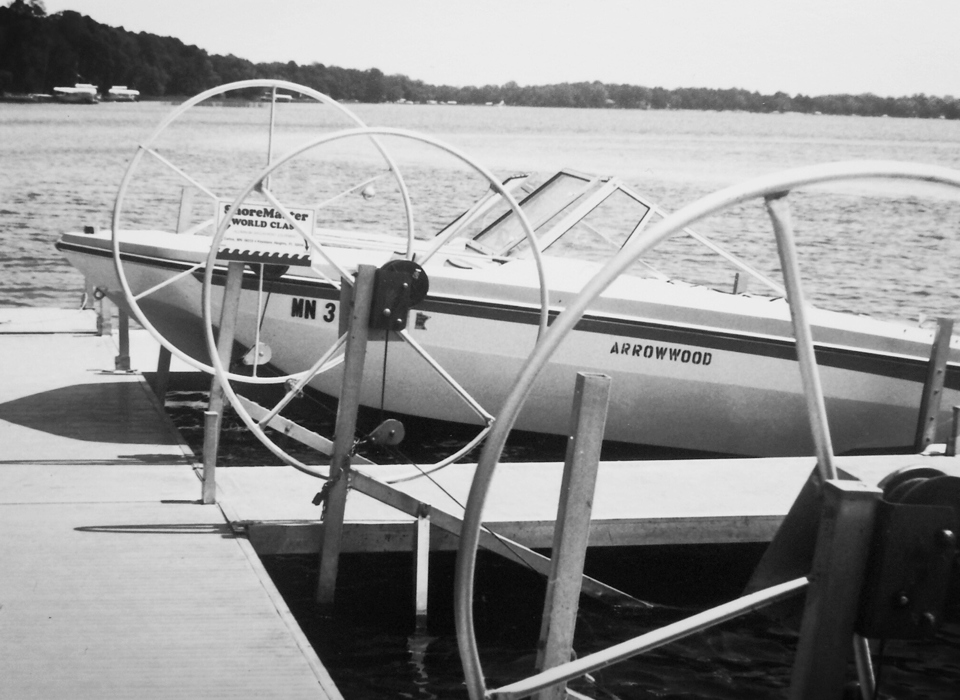

From pioneering the welded aluminum lift to leading modern design, ShoreMaster’s 50+ year legacy is built on reliability you can count on season after season.
CONSTRUCTION DETAILS
Frame Construction:
Precision dime-welded marine-grade aluminum
Heavy-duty connection points + reinforced corners
Through-bolted for maximum rigidity
Operation:
Exclusive Whisper Winch: cast aluminum housing, one-directional bearing for silent, smooth lifting
Swedged cable ends prevent snags + maintain a clean look
Brass pulleys & stainless bushings reduce wear
Design Features:
66” rack travel + 84” high winch post for fluctuating water levels
Double V-Side design for easy boarding from either side
Non-marring UHMW rack rollers protect hull finishes
Low Maintenance:
Welded seams = fewer bolts to check or tighten
All aluminum & stainless = rust-free for decades
UHMW rollers resist abrasion + need zero lubrication
PRODUCT HIGHLIGHTS
Wider and Longer Frames Provide Better stability for Today’s Pontoons
Dime-Welded Construction with Double V-Side Design
Exclusive Whisper Winch (the industry’s quietest operation)
Available Motorized Operation (Integrated or Add-On)
66” Rack Travel
Available in capacities of 4,000 – 7,000lbs
84” Winch Post
Industry’s Easiest Assembly & Installation (8 piece design)
GALLERY
SPECIFICATIONS
Model | Capacity | Inside Width | Lift Travel | Std. Leg Length | Overall Width | Overall Length | Winch Model | Canopy Length |
4010PTN | 4,000 LB | 120" | 66" | 36" | 132" | 162" | 241 Whisper Winch | 23'-33' |
5510PTN | 5,500 LB | 120" | 66" | 36" | 132" | 162" | 241 Whisper Winch | 23'-33' |
701168PTN | 7,000 LB | 132" | 66" | 36" | 144" | 216" | SM 7000 | 27'-35' |
Related Articles
ShoreMaster Featured On Modern Living With kathy ireland®
ShoreMaster Featured On Modern Living With kathy ireland®
ShoreMaster Featured On Modern Living With kathy ireland®
FAQs for Infinity Pontoon Lifts:
How is this different from a standard vertical boat lift?
It’s engineered with extra width, length, and supportive pontoon guides specifically to cradle and protect today’s heavier, wider pontoons.
Can I add a motor or canopy later?
Yes — our modular system makes it simple to add ShoreMaster motors, canopies, or guide-ons whenever you’re ready.
What water depths work best?
This system’s 66” rack travel and 84” high winch post handle fluctuating lake levels with ease. Your local dealer can measure your site to confirm the perfect fit.
Will this work for a tritoon?
Absolutely. The additional frame width and pontoon rail kits are designed to support today’s triple-tube designs.
